Siemens 3RH2911-1FA22: Specifications and Applications

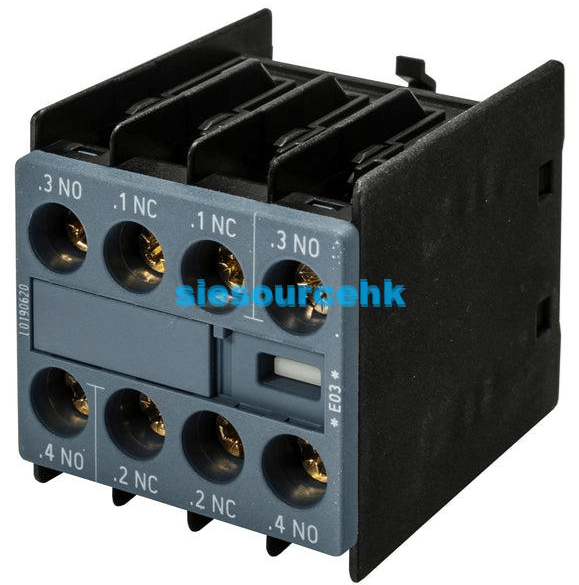

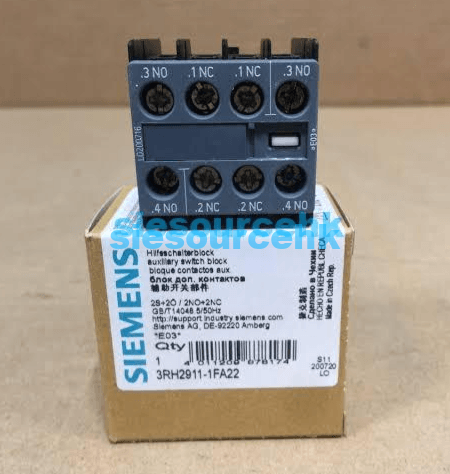

The Siemens 3RH2911-1FA22 is a front-mounted auxiliary contact block designed for compatible SIRIUS 3RT2 contactors and 3RH2 contactor relays. Featuring two normally open (NO) and two normally closed (NC) contacts, it supports control signaling, electrical interlocking, and equipment status monitoring in industrial automation systems.
Unlike a complete contactor relay, this accessory operates mechanically with its host device and does not require an independent operating coil.
What Is the Siemens 3RH2911-1FA22?
The 3RH2911-1FA22 expands the available auxiliary contacts of compatible Siemens switching devices.
When the associated contactor operates, the auxiliary contacts change state, allowing control circuits to respond.
Its main functions include:
- Status monitoring: Provides contactor operating feedback.
- Electrical interlocking: Helps coordinate switching operations.
- PLC integration: Supplies status signals to compatible digital inputs.
- Control circuit expansion: Adds four auxiliary switching contacts.
The device is intended for control circuits rather than directly switching motor power.
Siemens 3RH2911-1FA22 Technical Specifications
The following table summarizes the principal manufacturer specifications.
| Parameter | Specification |
|---|---|
| Manufacturer | Siemens |
| Model | 3RH2911-1FA22 |
| Product series | SIRIUS |
| Product type | Auxiliary contact block |
| Contact configuration | 2 NO + 2 NC |
| Contact operation | Instantaneous |
| Mounting | Front-mounted, snap-on |
| Connection | Screw terminals |
| Compatible families | 3RT2 / 3RH2 |
| Dimensions (W × H × D) | 36 × 37.5 × 43.7 mm |
| Operating temperature | -25°C to +60°C |
Electrical ratings depend on operating voltage and load characteristics. Engineers should consult Siemens documentation before selecting the device for AC-15 or DC-13 applications.
Understanding NO and NC Contacts
| Contact type | Normal state | Actuated state | Typical use |
|---|---|---|---|
| NO | Open | Closed | Operating feedback |
| NC | Closed | Open | Electrical interlocking |
These contacts change state with the associated contactor mechanism.
For example, an NO contact may indicate that a contactor has operated, while an NC contact can interrupt another control circuit.
3RH2911-1FA22 Compatibility and Installation
The auxiliary block is designed for compatible Siemens SIRIUS 3RT2 contactors and 3RH2 contactor relays.
Before installation, verify:
- The complete host-device model and approved accessory combination.
- The required 2 NO + 2 NC contact arrangement.
- Available mounting space and terminal accessibility.
- Control circuit voltage, current, and conductor requirements.
The front-mounted design allows the contact block to attach directly to a compatible switching device.
Installation should follow Siemens instructions, including terminal wiring, tightening torque, and electrical testing.
Although auxiliary contacts provide useful operating feedback, they do not independently confirm motor rotation or mechanical movement.
Industrial Applications of 3RH2911-1FA22
Motor Control Systems
In motor starters, auxiliary contacts support operating feedback and electrical interlocking.
For reversing motor circuits, an NC auxiliary contact may help prevent conflicting contactor commands when incorporated into a correctly designed interlocking circuit.
PLC and Automation Panels
The contact block can send switching status signals to compatible PLC digital inputs.
These signals support equipment monitoring, sequence control, and fault diagnosis. However, they indicate contactor operation rather than actual process performance.
Conveyor and Manufacturing Equipment
Conveyor systems and production machinery often require coordinated switching between multiple motors.
Additional auxiliary contacts can provide operating status signals and control permissions between equipment sections.
Electrical Control Cabinets
Panel builders use auxiliary contact blocks for indicator lamps, interlocking circuits, and control signal distribution.
The front-mounted configuration expands contact availability without adding another independent relay coil.
Technical Considerations for Reliable Operation
Correct contact selection is important for industrial control reliability.
Engineers should consider three factors:
- Load characteristics: Inductive loads may produce higher switching stress than resistive loads.
- Electrical ratings: Switching capacity varies with voltage and utilization category.
- Contact feedback: An auxiliary contact indicates the associated mechanism’s state, not necessarily the condition of the connected load.
The Siemens 3RH2911-1FA22 auxiliary switch is listed by SieSourcecontrol for industrial control applications.
For accurate installation and operation, the manufacturer’s technical documentation should be used to verify the complete device configuration.
