Allen Bradley Industrial Switching Power Supply 1606 Guide

The Allen Bradley Industrial Switching Power Supply 1606 series delivers highly efficient DC power for modern automation systems. These advanced devices convert unstable input voltages into clean, regulated DC outputs. Their robust engineering ensures long-term system stability in demanding industrial environments.

Choosing the right power hardware is vital for preventing unscheduled system downtime. Rockwell Automation built this product family to offer superior space-saving layouts on standard DIN rails. It supports diverse applications, from simple sensors to complex machinery.

Reliable power conversion forms the absolute foundation of any industrial control cabinet. High-quality switching modules protect sensitive electronics from dangerous voltage fluctuations on the primary grid. This guide explains how to select and deploy these critical power solutions effectively.

What is the Allen Bradley Industrial Switching Power Supply 1606 Series?

The Allen Bradley Industrial Switching Power Supply 1606 series represents a major advancement in industrial-grade power distribution technology. Rockwell Automation engineered these components to replace older, inefficient linear power supplies. They provide stable, low-noise DC voltage to sensitive control circuits.

Modern industrial plants rely on switching technology to minimize thermal output in control cabinets. The 1606 product line achieves this through advanced high-frequency switching circuits. These circuits dramatically reduce power losses and lower utility costs.

This versatile power family is organized into distinct sub-series to meet specific operational requirements. The XLS performance series targets demanding, high-load machinery. Meanwhile, the XLE series provides essential functions for cost-sensitive automation projects.

Additionally, the XLP series offers an ultra-compact footprint for installations with limited enclosure space. Legacy XL models continue to support older, existing system retrofits. Together, these families offer comprehensive coverage for industrial power needs.

Table: Technical Comparison of Bulletin 1606 Series

Key Specifications and Performance Benchmarks of Bulletin 1606

Technical specifications define the reliability and efficiency of the Allen Bradley Industrial Switching Power Supply 1606 family. These units accept a wide range of AC and DC input voltages. This universal input capability simplifies global system design and deployment.

Most models deliver regulated 24V DC outputs, which is the standard voltage for industrial controls. Some specialized models also provide 12V or 48V DC options. This flexibility allows engineers to power diverse sensor and actuator networks.

Outstanding efficiency ratings of up to 95% help reduce thermal load inside sealed enclosures. This high efficiency prolongs the lifespan of neighboring control components. Many models also feature a 150% power boost for starting heavy inductive loads.

Integrated protection mechanisms guard against short circuits, overloads, and high temperatures. These intelligent devices shut down safely or limit current during fault conditions. They automatically resume normal operations once the electrical fault is cleared.

Critical Applications in Modern Industrial Automation Systems

The robust design of these switching supplies makes them ideal for demanding manufacturing environments. Automated assembly lines utilize them to power programmable logic controllers and operator interfaces. Their reliable performance prevents costly stops in continuous production workflows.

In process industries, these units power critical safety systems, temperature transmitters, and flow meters. They withstand electrical noise and voltage fluctuations common in heavy industrial grids. This electrical isolation protects sensitive microprocessor-based equipment from line surges.

Furthermore, these power modules are widely used in wastewater treatment facilities and outdoor pump stations. They operate reliably across a broad temperature range of -25 to 70 degrees Celsius. Their corrosion-resistant housings protect internal electronics from humidity and dust.

Material handling systems also benefit from the rugged mechanical design of these switching supplies. They resist high-frequency vibrations caused by heavy conveyors and sorting machinery. This durability ensures consistent control power in active warehouse environments.

How to Choose the Right Allen Bradley Industrial Switching Power Supply 1606 for Your Project

Selecting the appropriate power unit requires analyzing the total current demand of your control system. Engineers must calculate both continuous currents and temporary peak start-up currents. Choosing an undersized module leads to frequent system resets under high loads.

Thermal derating factors are also critical when mounting components in environments with high ambient temperatures. Power output capacity typically decreases when operating above 50 degrees Celsius. Designers must consult official derating curves to ensure reliable performance.

For maximum system reliability, engineers should consider incorporating redundant power configurations. Redundancy modules connect two independent supplies to a single distribution bus. If one unit fails, the secondary supply instantly takes over the load.

Physical cabinet space represents another critical bottleneck in modern factory control panel layout design. If width is restricted, the high-density 1606-XLP compact family provides an exceptional space-saving solution. Balancing thermal dissipation against module size ensures the longest possible service life.

Sourcing and Support for Bulletin 1606 Components

Procuring authentic hardware is essential for maintaining factory safety standards and warranty coverages. Industrial distributors offer comprehensive technical support and verify product authenticity before shipment. Engineers can evaluate specific models on dedicated procurement platforms to match project requirements.

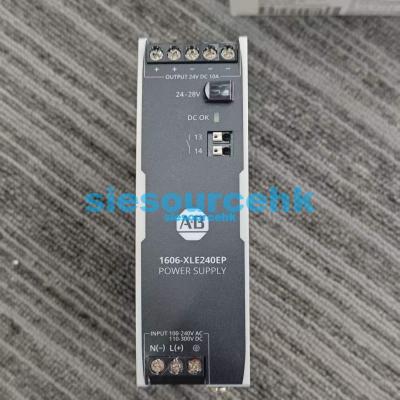

Routine inspections and monitoring of the integrated diagnostic LEDs help prevent unexpected failures. The front-panel DC-OK status indicator provides immediate local feedback on output voltage health. These simple maintenance practices maximize the service life of your control systems.

Long-term hardware availability represents another vital consideration for legacy industrial control system support workflows. Rockwell Automation maintains exceptional support networks to ensure replacements remain accessible for active operations. Partnering with verified suppliers guarantees access to certified stock and engineering documentation.

Product Model

Frequently Asked Questions (FAQ)

Q: What is the primary difference between the XLS and XLE series in the Bulletin 1606 family?

A: The 1606-XLS is a high-performance series offering up to 95.5% efficiency and a 150% short-term power boost for inductive loads. The 1606-XLE focuses on cost-sensitive, essential power requirements with standard load regulation and slightly lower efficiency.

Q: Can Allen Bradley 1606 power supplies be connected in parallel for higher power output?

A: Yes. Most XLS models support direct parallel connection for increased current output or redundant systems. It is recommended to use redundancy modules (like the 1606-XLR) to balance loads and isolate faults safely.

Q: What environmental certifications do the 1606 switching power supplies carry?

A: The 1606 series typically holds key industrial certifications including UL 508 (Industrial Control Equipment), CE Mark, and Class I Division 2 certification for installation in hazardous locations.

Q: How does thermal derating affect the output capacity of these industrial power supplies?

A: Most 1606 modules operate at full output power up to 50°C. Above this ambient temperature, output capacity must be derated (usually by 2.5% per degree Celsius up to 70°C) to prevent thermal overload and protect internal circuits.
