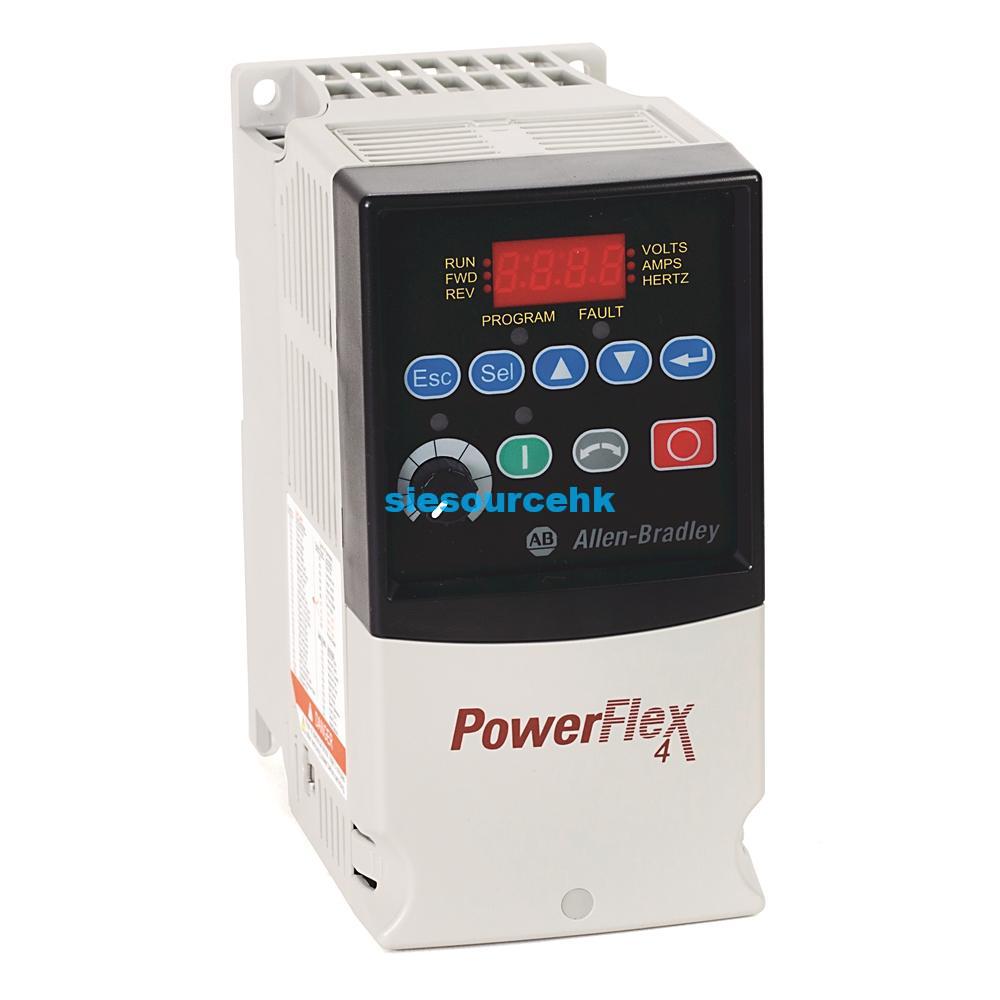

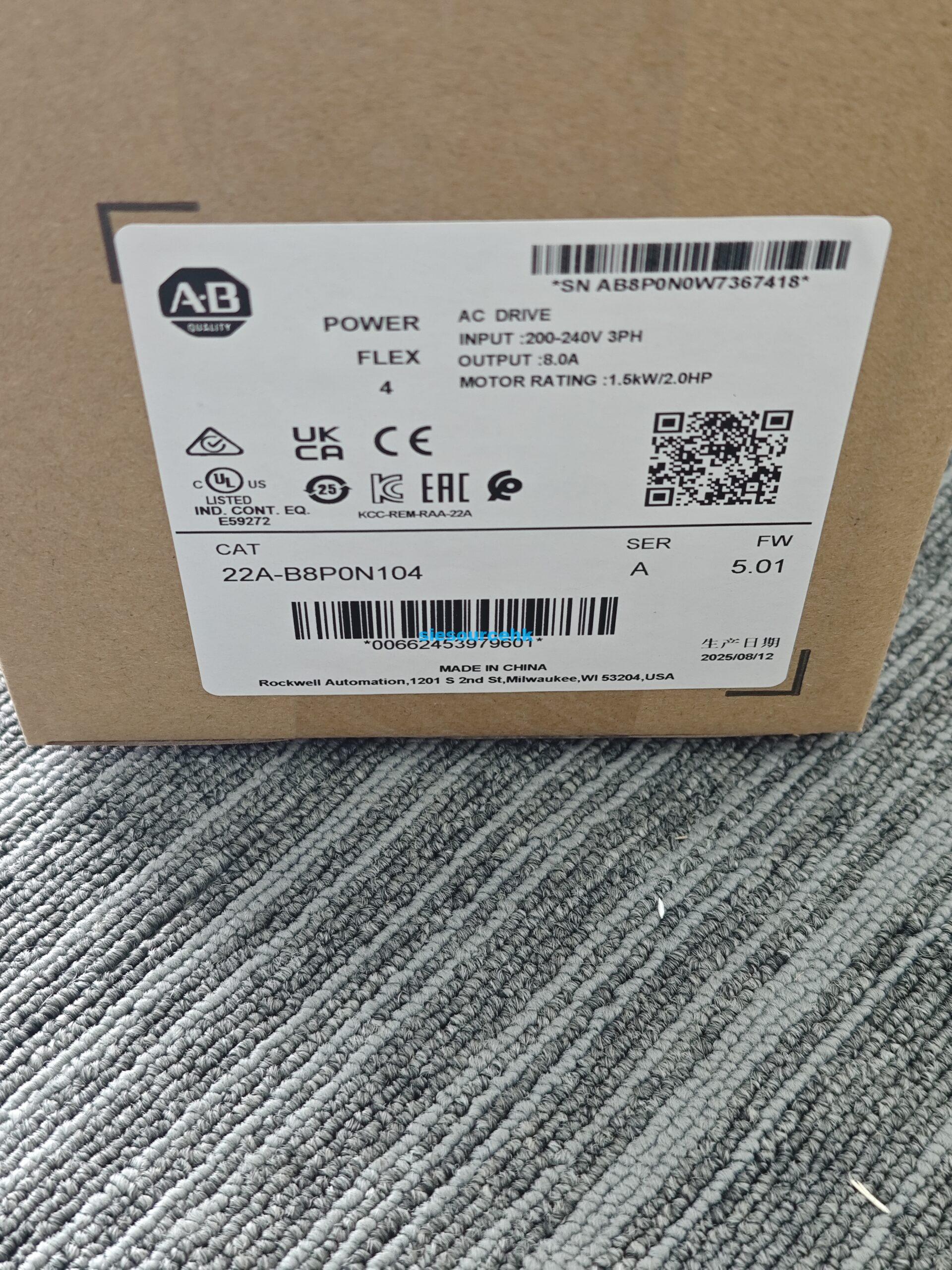

Allen Bradley Inverter 22A-B8P0N104
原价为：$633.00。$581.00当前价格为：$581.00。
Allen‑Bradley 22A‑Series (PowerFlex 4) – Compact AC Drives for Simple Control
Complete PowerFlex 4 AC drive portfolio from Allen‑Bradley – built for space‑saving, cost‑effective motor speed control. Available in 120V (1‑phase), 240V (1/3‑phase), and 480V (3‑phase) classes, with current ratings from 1.4A to 17.5A (0.2–3.7kW). Features panel or flange mount IP20 enclosures, integrated fixed keypad with LED display, built‑in RS485, 97.5% efficiency, and robust I²t overload protection. Simple configuration and quick startup. Ideal for conveyors, fans, pumps, packaging, and OEM machinery applications. Worldwide approvals: UL, cUL, CE, C‑Tick
Main Product Series – Function & Application Comparison
| Feature Category | Specifications and Options | Key Features |
|---|---|---|
| Power Range | 0.2 – 3.7 kW | Compact size, cost-effective, ideal for OEM and simple industrial applications |
| Voltage Classes | 120V AC (1-phase), 240V AC (1/3-phase), 480V AC (3-phase) | Wide input flexibility for global use |
| Enclosure Options | IP20 Panel/Flange Mount, NEMA/UL Type Open | Space-saving design; flange mount for machine integration |
| Control & I/O | Fixed keypad, RS485 comms, 2 analog inputs, multiple discrete I/O | Intuitive operation with built-in LED display; easy PLC integration |
| Environmental Limits | Up to 50°C ambient, zero-gap mounting at 40°C | Reliable operation in demanding cabinet conditions |
Typical Applications & Industries:
✓ Conveyors, fans, and pumps for material handling ✓ Packaging machinery
✓ OEM equipment and simple machine building ✓ Speed control and energy-saving retrofits
Detailed Description – Allen‑Bradley 22A‑Series (PowerFlex 4)
1. Series Overview – Compact, Cost‑Effective AC Drives
The Allen‑Bradley 22A‑series, part of the PowerFlex 4 family, is a compact AC drive designed for applications where simplicity, space savings, and economy are priorities. Built for global OEMs and end users, these drives provide adjustable frequency control with a small footprint, offering a practical solution for basic motor speed control across various industries.
Key Family Features:
✓ Space‑saving design – Panel and flange mount options with IP20/NEMA open enclosure; flange mount saves cabinet space
✓ Simple operation – Integrated keypad with LED display and local potentiometer, ready for use out of the box
✓ High efficiency – Typical efficiency of 97.5% minimizes energy loss and lowers operational costs
✓ Wide power coverage – 0.2 kW to 3.7 kW, with multiple voltage and current ratings
✓ Built‑in RS485 communication – Standard for easy integration with peripheral devices
✓ Robust protection – I²t overload (Class 10), overcurrent, overvoltage, and motor overload retention features
2. Application Versatility
The 22A‑series drives are ideal for applications with simple speed control requirements. Their compact form and easy‑to‑use interface make them particularly suitable for machine builders and system integrators.
Key Applications:
✓ Conveyors and material handling – Adjustable speed for product flow
✓ Fans and pumps – Energy‑saving variable speed control
✓ Packaging machinery – Reliable speed regulation for consistent output
✓ OEM equipment – Compact, cost‑effective solutions for machine integration
3. Flexibility and Configuration
The 22A‑series offers various configuration options to suit different installation and application requirements:
Wide Voltage and Power Range – Supports 120V, 240V, and 480V input, with single‑phase and three‑phase options. Current ratings range from 1.4A to 17.5A, covering 0.2 kW to 3.7 kW.
Enclosure and Mounting – Available in Panel Mount and Flange Mount, both with IP20/NEMA Type Open ratings. Panel mount for standard control cabinet installation, flange mount for direct integration into machinery to save panel space.
Integrated I/O and Control – Drives include a fixed keypad for local control, RS485 communication port for serial networking, plus multiple discrete inputs/outputs and analog inputs for external control and status feedback.
Selection Guide – Understanding the Naming Convention
Part Number Format: 22A - [Voltage Code] [Current Code] [Enclosure Code] [HIM Code] [Emission Class] [Brake Option]
Example: 22A-D6P0F104
| Code Position | Meaning | Options |
|---|---|---|
| 22A | Product family: PowerFlex 4 AC Drive | 22A |
| Voltage (1st letter) | Input voltage / phase | V=120V AC 1‑Phase, A=240V AC 1‑Phase, B=240V AC 3‑Phase, D=480V AC 3‑Phase |
| Current (next 3 char) | Output current rating | 1P5=1.5A, 2P3=2.3A, 4P5=4.5A, 6P0=6.0A (120V); 4P0=4.0A, 6P0=6.0A (480V); etc. |
| Enclosure (next char) | Mounting type | F=Flange Mount, N=Panel Mount (IP20/NEMA Open) |
| HIM (next char) | Human Interface Module | 1=Fixed keypad with LED display |
| Emission (next 2 chars) | EMC filter class | 0=Not filtered, 1=Filtered |
| Brake (last char) | Braking IGBT | 4=Standard brake, 3=No brake IGBT |
Model Decoder Examples:
| Model Number | Decoding |
|---|---|
| 22A‑V6P0F104 | 120V AC 1‑phase, 6.0A (1.1kW), Flange Mount, Fixed Keypad, Not Filtered, Standard Brake |
| 22A‑D6P0N104 | 480V AC 3‑phase, 6.0A (2.2kW), Panel Mount, Fixed Keypad, Not Filtered, Standard Brake |
| 22A‑A2P1N113 | 240V AC 1‑phase, 2.1A (0.4kW), Panel Mount, Fixed Keypad, Filtered, No Brake IGBT |
| 22A‑V4P5N104 | 120V AC 1‑phase, 4.5A (0.75kW), Panel Mount, Fixed Keypad, Not Filtered, Standard Brake |
