SMC ITV2050 Troubleshooting Guide: Common Problems and Solutions

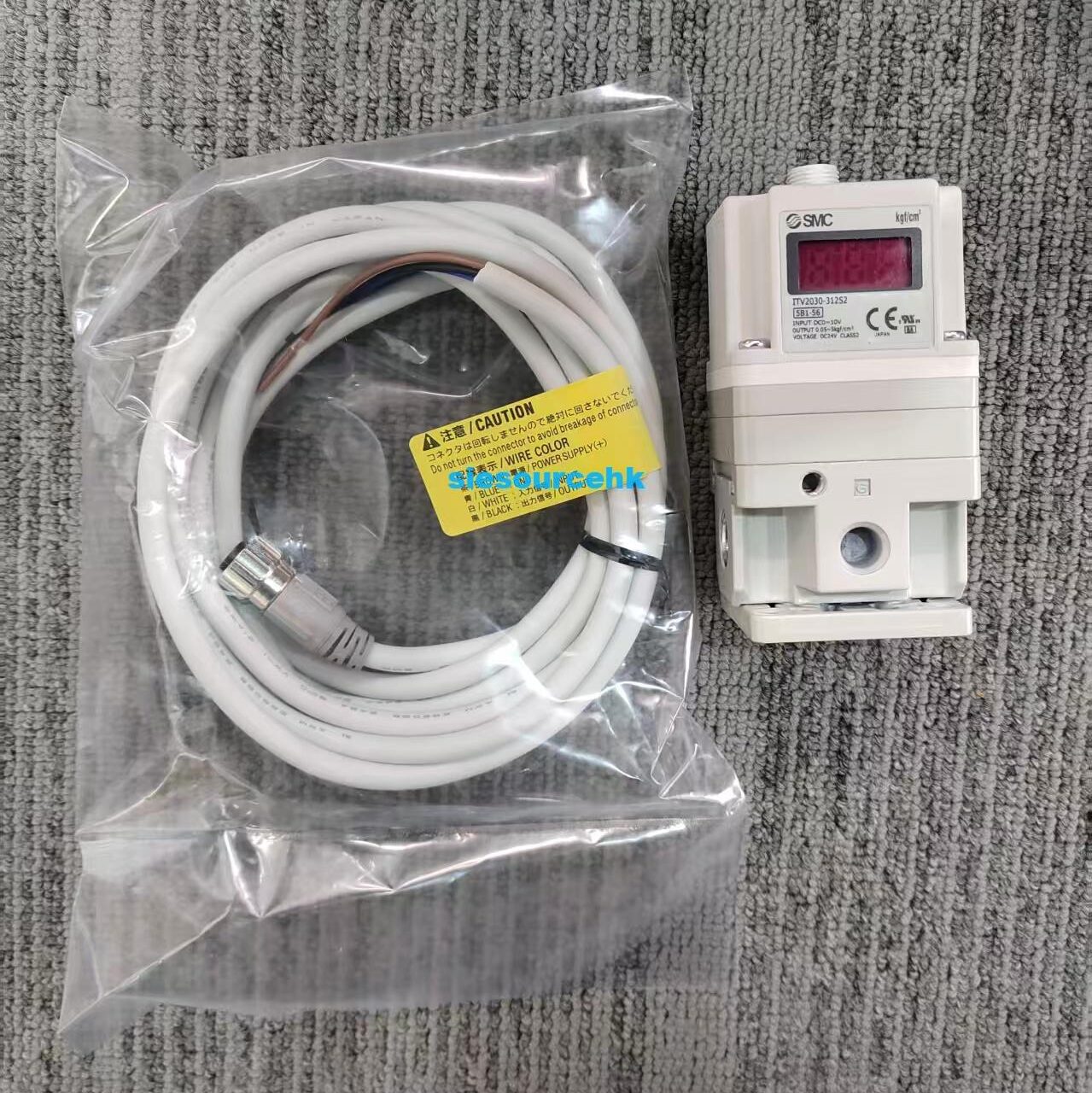

In precision automation, the SMC ITV2050 electro-pneumatic regulator is a critical component for controlling air pressure via electrical signals. When an ITV2050 fails, it often halts an entire production line, leading to costly downtime. This guide provides a technical deep-dive into diagnosing and resolving the most frequent issues encountered in the field.

Understanding the SMC ITV2050 Diagnostic Logic

The ITV2050 series operates on a feedback control system. It compares the input signal (typically 4-20mA or 0-10V) with the measured output pressure via an internal sensor. If the internal logic cannot reconcile these two values, the unit will either underperform or trigger a fault.

Before dismantling the unit, always verify the “The Rule of Three” for pneumatic electronics:

1. Power Supply: Is the 24VDC stable?
2. Input Signal: Is the PLC or controller sending a clean, non-fluctuating signal?
3. Supply Air: Is the inlet pressure at least 0.1 MPa higher than the maximum intended set pressure?

Quick Diagnostic: SMC ITV2050 Error Codes

The integrated LED display on the ITV2050 is your first line of defense. These codes indicate specific circuit or sensor failures.

Solving Common Performance Issues

Beyond explicit error codes, many ITV2050 problems manifest as “soft failures”—where the unit operates but not within specification.

1. Pressure Hunting and Oscillation

If the output pressure “hunts” (rapidly fluctuates around the set point), the system is likely experiencing gain instability.

• The Cause: Often caused by a very small downstream volume or a mismatch between the regulator’s internal PID settings and the application.
• The Fix: Increase the downstream volume by adding a small buffer tank or increasing the tubing length. If your model supports it, adjust the sensitivity/gain settings via the “Set” and “Up/Down” buttons to dampen the response.

2. Residual Pressure in the System

A common complaint is that the ITV2050 does not drop to zero pressure when the signal is removed.

• The Cause: This usually stems from a blocked exhaust port (the small silencer on the side) or a slight mechanical bias in the pilot valve.
• The Fix: Clean or replace the exhaust silencer. Ensure the supply air is dry and oil-free; oil mist can cause the internal diaphragm to stick, preventing a full exhaust.

3. No Output Pressure Despite Valid Signal

When the display shows a set pressure but the gauge reads zero, the mechanical pilot system is often compromised.

• The Cause: Debris in the 5-micron internal filter or a failed solenoid pilot valve.
• The Fix: Verify that the supply pressure is actually reaching the unit. If the unit clicks but provides no air, the internal poppet may be stuck. Note that the ITV2050 is a non-repairable “sealed” unit for many internal components, but external port cleaning is possible.

Technical Maintenance: Preventing Premature Failure

To avoid frequent ITV2050 troubleshooting, industrial environments must adhere to strict air quality standards. The ITV series is sensitive to contaminants.

• Filtration Requirements: Use an SMC AF series filter (5μm) and an AFM series mist separator (0.3μm) upstream. Water or oil carryover from the compressor is the #1 killer of electro-pneumatic regulators.
• Lubrication Warning: Never lubricate the air supply leading into an ITV2050. The lubricants will coat the internal pressure sensor and solenoid seats, leading to permanent calibration drift.
• Wiring Interference: Ensure signal cables are shielded, especially if the ITV is mounted near high-frequency motors or VFDs. Electromagnetic interference (EMI) can mimic “hunting” behavior.

When to Repair vs. Replace

In a manufacturing environment, the decision to troubleshoot further or replace the unit depends on the “Internal vs. External” fault logic.

• External Faults: Issues with supply pressure, input signal, or clogged silencers can be fixed on the machine.
• Internal Faults: If the LED remains blank despite power, or Er2/Er3 codes persist after a reset, the internal circuit board or sensor is likely shot.

For many maintenance departments, keeping a spare ITV2050 on the shelf is standard practice. When sourcing a replacement, ensure the full part number matches. For example, the ITV2050-312L differs significantly in signal type and pressure range from an ITV2050-012L.

If you are currently experiencing downtime and need to source a specific ITV configuration, you can view the full technical specifications and availability on the Siesource ITV Product Catalog. Matching the exact voltage and pressure characteristics is vital to ensuring the PLC logic doesn’t require a complete rewrite.

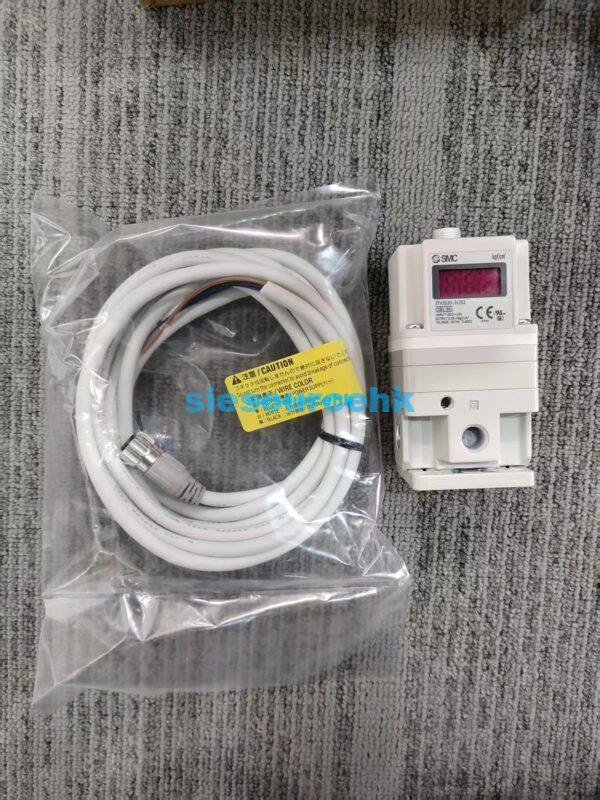

Available SMC ITV2050 Models and Specifications

FAQ

Why is my SMC ITV2050 showing “0” even with a 10V signal?

Check the “Lock” function. If the unit is electronically locked, it may not accept changes. Also, verify that your supply air pressure is at least 0.1 MPa higher than your desired output. Without a pressure differential, the unit cannot physically move the diaphragm.

Can I use the ITV2050 for vacuum applications?

No. The ITV2050 is designed for positive pressure (0.005 to 0.9 MPa). For vacuum applications, you must use the ITV2090 series, which is specifically engineered for vacuum regulation.

How do I reset the ITV2050 to factory settings?

Most ITV models can be reset by holding the “SET” button while powering on the unit, though the exact sequence depends on the specific revision. Consult your specific manifold manual, as some customized OEM versions may have locked firmware.

Is the ITV2050 compatible with 4-20mA and 0-10V?

Usually, no. You must select the specific input signal type when purchasing. An ITV2050-0 (0-10V) cannot be changed to an ITV2050-3 (4-20mA) in the field as the input impedance and circuitry are different.

What is the maximum supply pressure for the ITV2050?

The maximum supply pressure is 1.0 MPa (145 PSI). Exceeding this can damage the internal sensor and the flexible diaphragm.

Reference Sources:

• SMC Corporation: ITV Series Technical Operation Manual
• ISO 8573-1:2010: Compressed Air Contaminants and Purity Classes
• Industrial Automation Engineering Standards regarding Signal Conditioning for Electro-Pneumatics.
